XPG

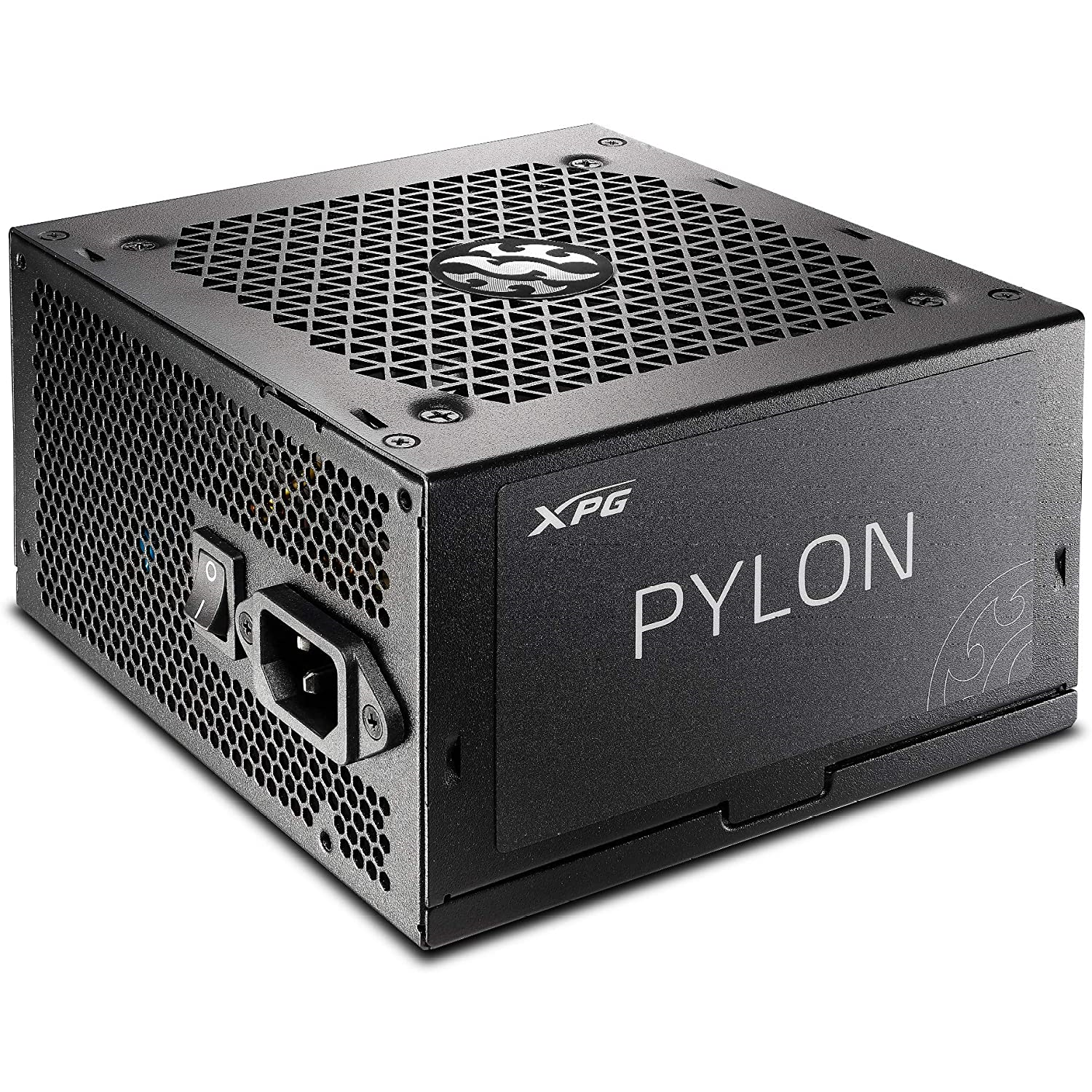

XPG Pylon 750W
Specifications
General Information
- Brand
- XPG
- Model
- XPG Pylon
- Category
- PSUs
Technical Specs
- Fan Size
- 120mm
- Modularity
- non-modular
- Atx Version
- Intel V2.52
- Fan Bearing
- Fluid Dynamic Bearing (FDB)
- Protections
- OCP, OVP, UVP, OPP, SCP, OTP, NLO, SIP
- Capacitor Type
- Main Japanese Capacitor
You Might Also Like
About this product
750W Confidence Core: A Clean Power Base for Real Builds
The XPG Pylon 750W is designed for balanced PC upgrades, rozana gaming aur productive work dono ke liye, with a full 750W rated output for modern parts. The wattage headroom helps you plan without constant PSU swapping, especially when a GPU refresh is on the checklist. The unit keeps cabling straightforward because it uses fixed, non modular cables, jo first time builders ke liye bhi simple routing banata hai if your case has basic cable channels. The platform is positioned as Bronze rated on 80 PLUS, so heat output stays controlled compared to older, inefficient supplies. The Cybenetics rating shown for 650W/750W is Silver on the official spec listing, which adds a second, practical reference for efficiency/noise behavior beyond the basic badge. The chassis footprint remains easy to fit in mainstream towers, to assemble karte waqt clearance ki tension kam rehti hai, while still keeping an ATX form factor. The overall goal is simple daily stability, taake random reboots ya voltage wobble wali frustration na ho, and that’s where a well specified 750W PSU matters
Compact ATX Fit: Easy Case Compatibility Without Guesswork
The compact housing keeps installs predictable in most cases, aur aapko GPU clearance ke sath PSU depth par bhi control milta hai, thanks to a 140 x 150 x 86mm size listing. The ATX format stays widely compatible with common desktop layouts, so you are not locked into niche chassis standards. The wide input range supports 100 240V operation, safar ya mixed power environments mein bhi, which is useful if your setup moves between locations. The power factor correction is specified at 0.99, which typically means cleaner draw from the wall under load and less wasted reactive power in normal use. The operating temperature spec is listed up to 50°C, so airflow planning remains important but the PSU is rated to tolerate warmer internal conditions. The build stays practical for everyday towers, bilkul especially if you want an ATX unit that does not demand oversized PSU bays, and that keeps the whole build process smoother. The fixed cable design also reduces decision fatigue at install time, kyun ke modular ports aur extra cables manage karna nahi padta, and that can speed up first builds
DC-to-DC Stability: Smoother Power Delivery Under Mixed Loads
The internal DC to DC approach targets steadier rails in real workloads, jab CPU boost aur GPU bursts ek saath hit karte hain, which helps reduce the feeling of instability during heavy gaming. The design messaging highlights DC to DC with “100% +12V Full Power” for the Pylon series, aiming for consistent delivery where modern systems pull most of their power. The platform timing compliance is stated as Intel ATX 12V v2.4 with timing guidelines complying up to version 2.52, so motherboard handshake behavior stays within the expected envelope. The Cybenetics test listing also identifies the Pylon 750W as an ATX12V unit with fixed cables, which supports the idea that it targets standard desktop builds rather than exotic formats. The OEM is listed as Channel Well Technology in the Cybenetics report, jo PSU manufacturing mein known scale provide karta hai, and that matters for consistency across batches. The result is less “tuning drama” for typical users, kyun ke stable power behavior keeps troubleshooting focused on parts and settings, not the power foundation. The overall build experience becomes calmer, especially when you are chasing stable boosts, clean shutdowns, and predictable sleep/wake behavior
Connector Readiness: Built to Feed GPU + CPU Without Splitter Stress
The connector mix is tuned for mainstream gaming hardware, jahan GPU ko proper PCIe power chahiye hoti hai, and the 750W model lists four PCI E 6+2 pin connectors. The CPU side stays flexible with both an EPS 8 (4+4) connector and an additional EPS 8 pin listed for the 750W variant, which helps on boards that want extra CPU power input. The storage and peripheral wiring supports real builds with multiple drives, kyun ke 750W lists eight SATA connectors plus three Molex connectors for accessories and older devices. The motherboard feed remains standard with one 24 pin ATX connector, so compatibility with common ATX boards stays simple. The cabling is fixed rather than modular, which trades premium cable customization for fewer connection points and a simpler “plug and route” approach. The Cybenetics report also documents typical cable lengths and grouping, jo planning ke waqt help karta hai if your case is tall or has a bottom shroud. The practical benefit is fewer splitters and fewer compromises, bilkul especially when you want clean, direct connections to the GPU and CPU under load
Bronze Efficiency with Silver Validation: Less Heat, More Usable Headroom
The 80 PLUS Bronze rating targets better efficiency at common loads, jis ka simple faida yeh hai ke heat kam banti hai, and your case fans do not need to work as hard. The official spec page also lists a Cybenetics rating of Silver for 650W/750W, which adds a performance oriented lens on efficiency and acoustics. The Cybenetics lab report measured average efficiency at 85.796% on 115V and 88.126% on 230V over many load combinations, which is a real world style view rather than a single point claim. The same report shows standby power consumption in the tiny fractions of a watt range, which helps keep always on electricity waste low for sleep heavy usage. The average power factor results stay close to 1 in the lab report, jo wall draw ko zyada disciplined banata hai, and that pairs well with the stated PFC value. The datasheet positioning also mentions suitability for steady 24/7 operation, which is relevant if the PC runs long renders or downloads overnight. The everyday outcome is more consistent thermals, smooth performance under load, aur overall system noise profile par bhi positive asar, without forcing you into a higher certification tier
120mm FDB Fan Cooling: Controlled Airflow Without Harsh Noise Spikes
The cooling system uses a 120mm fan with Fluid Dynamic Bearing, jo long sessions mein smoother rotation aur better longevity feel deta hai, and the spec lists up to 2,000 RPM fan speed. The FDB bearing choice is a practical step for quieter operation over time, because it is typically less prone to the rough bearing noise that can appear in cheaper designs. The datasheet notes the fan control starting around 700 RPM at 25°C ambient and staying low until roughly 70% load, which supports the idea of a calm acoustic profile in normal daily usage. The Cybenetics report measured noise ratings around 29.81 dBA at 115V and 30.46 dBA at 230V across many load combinations, which aligns with a “quiet enough” behavior for most rooms. The design does not advertise semi passive operation in the Cybenetics listing, so the fan is meant to be consistently managed rather than fully off at idle. The benefit is stable thermals, heat kam rehti hai when the PSU is actually working, and that helps maintain predictable boosts on the rest of your system. The overall experience stays refined for everyday builders, especially when you want quiet browsing and steady gaming without sudden fan ramp surprises
Japanese Main Capacitor: Built for Heat Tolerance and Long-Term Stability
The power stage emphasizes a Japanese main capacitor rated at 105°C, jo durability aur stability ke liye ek meaningful indicator hai, especially when the PSU sits near a warm GPU. The Cybenetics teardown style report lists a Nippon Chemi Con bulk capacitor in the tested unit, giving a concrete component reference beyond marketing language. The practical benefit of a stronger primary capacitor is better tolerance to heat cycles, kyun ke PCs daily on off aur load swings se guzarte rehte hain, and that can affect cheaper capacitors earlier. The unit’s MTBF is listed as 100K hours at 25°C, which indicates the design targets long service rather than short replacement cycles. The reliability story becomes more convincing when the platform is paired with protective circuitry and measured lab behavior, taake daily use mein random instability ka chance kam ho. The result is a PSU that feels “set and forget” for most users, particularly if the goal is stable gaming nights and consistent work sessions, without chasing exotic spec sheets
8 Industrial Protections: Guardrails for Spikes, Shorts, and Overload Events
The protection suite is clearly spelled out for peace of mind, kyun ke electrical faults usually come without warning, and the list includes OCP, OVP, UVP, OPP, SCP, OTP, NLO, and SIP. The core protections cover the common risks like over current, over voltage, under voltage, short circuit, over power, and over temperature behavior, which are exactly the events that can damage components if unchecked. The inclusion of NLO and SIP is highlighted as part of the industrial level set, jo is tier mein extra reassurance add karta hai, especially if your power line is not always perfect. The idea is not just survival during a fault, but also graceful shutdown behavior, taake motherboard aur GPU pe unnecessary stress na aaye, and that matters in long term ownership. The safety narrative is also reinforced in the Pylon series positioning as an efficiency and safety focused PSU family, where protections are part of the core promise rather than an afterthought. The everyday benefit is simple: fewer scary moments, less troubleshooting time, aur components ke liye better insurance, while keeping the build in a sensible mainstream category
Measured Resilience: Hold-Up Time and Standby Behavior That Matter Daily
The Cybenetics lab report provides useful real world metrics, jo spec sheet ke beyond confidence build karte hain, including hold up time and power signaling data. The measured hold up time is listed as 12.20 ms in the report, which helps the system ride through brief input dips without instantly collapsing outputs. The same report lists Power OK at 9.60 ms, which supports stable boot sequencing when the motherboard expects a clean “ready” signal. The standby power consumption is shown at 0.0428W (115V) and 0.0906W (230V), which is especially relevant if your PC sleeps often, rozana night sleep mode use karte hue. The report also marks ErP Lot 3/6 readiness, which aligns with the product positioning around modern standby efficiency and continuous operation mindset. The benefit shows up as fewer odd wake issues and less wasted power at idle, while still keeping strong behavior under gaming loads. The overall story becomes more trustworthy when numbers back it up, bilkul especially for buyers who want stability without moving into ultra premium PSU territory
Value Fit and Ownership Ease: A Straightforward PSU to Keep for Years
The warranty coverage is listed as 5 years on the official specification page, which supports long term ownership planning for a main PC. The warranty upgrade story is also echoed through a press release based news post, where the move from 3 years to 5 years is explicitly mentioned. The practical fit is strongest for gaming and creator rigs that need solid PCIe power, rozana long sessions, and a PSU that does not become the “weak link” during upgrades. The non modular design makes sense when budget to reliability matters more than custom sleeved cable aesthetics, kyun ke fixed cables are simpler and reduce extra connection points. The combination of Bronze certification with Cybenetics validation keeps the unit in a competitive efficiency class, so you avoid the hottest, loudest PSU behavior in typical use. The overall package focuses on durability cues like a 105°C Japanese main capacitor and a 120mm FDB fan, jo long run mein stability aur quieter feel provide karte hain. The closing logic is simple: if you want 750W headroom, stable protections, and measured efficiency behavior, this PSU delivers a grounded, no drama foundation
Also known as
XPG Pylon Bronze
Adata XPG Pylon
