XPG

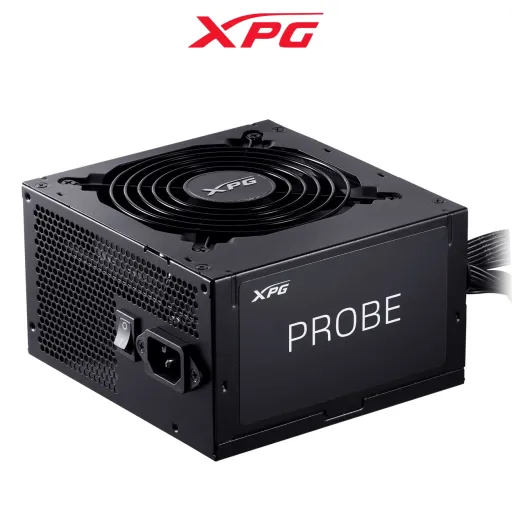

XPG Probe 700W
Specifications
General Information
- Brand
- XPG
- Model
- XPG Probe
- Category
- PSUs
Technical Specs
- Fan Size
- 120mm
- Modularity
- Non-modular
- ATX Version
- ATX 2.52
- Fan Bearing
- Sleeve Bearing Fan
- Protections
- OVP / OPP / SCP / UVP / OTP / SIP
- Dimensions(lxwxh)
- 140 x 150 x 86mm
You Might Also Like
About this product
XPG Probe 700W: Clean, Confident Power for Everyday Builds
XPG Probe 700W is designed to power modern PCs reliably. The ATX 2.52 platform keeps compatibility straightforward, build karna asaan hota hai, for most mainstream parts. The compact 140 x 150 x 86mm footprint helps you fit it cleanly. The short 140mm length reduces tight space frustration, cable routing bhi thoda simple ho jata hai. The 80 PLUS Bronze positioning focuses on sensible efficiency. XPG states up to 87% efficiency at 50% load, rozana ke use mein heat kam feel hoti hai. The 120mm low noise fan is paired with an intelligent curve for cooling. The protection stack adds confidence during spikes, unexpected load par tension kam rehti hai. The wide 100 240V input and active PFC aim for stable behavior. This overall package suits builders who want a practical PSU foundation without overcomplication
ATX 2.52 + Six Protections: Safety Layers That Actually Matter
Power protection becomes crucial when your PC hits sudden peaks. XPG lists six safeguards on the PROBE, including OVP, OPP, SCP, UVP, OTP, and SIP. Those protections cover voltage faults and overload events, yani system ko guard milta hai across common failure modes. Over voltage and under voltage protection are commonly described as shutdown mechanisms when rails go out of limits. Over power protection is also commonly described as shutting down if components pull above the unit’s rated capacity, overclocking bursts mein bhi. Over temperature protection is described as monitoring internal heat to keep operation safe. Short circuit protection is treated as a required behavior in Intel’s PSU design guidance, and it is intended to shut down safely on output shorts. Surge and inrush protection adds another practical shield, startup ke waqt jhatka kam hota hai. XPG also highlights ATX v2.52 compliance as part of safer operation. When these safeguards exist together, everyday use feels more predictable and less stressful
80 PLUS Bronze Efficiency: Cooler Operation for Long Sessions
Efficiency affects heat, fan noise, and overall comfort. The 80 PLUS program details Bronze targets for 115V internal non redundant PSUs at 82% (20% load), 85% (50% load), and 82% (100% load). Those targets help set a clear baseline, rozana ka usage mein heat kam banti hai compared to lower efficiency designs. XPG positions PROBE as 80 PLUS Bronze and claims it can exceed the requirement with up to 87% efficiency at 50% load. That mid load point is where many gaming PCs live, especially when the GPU isn’t maxed 24/7. Less wasted power means less heat dumped into your case, aur fans ko itna zor nahi lagana padta. The PSU also lists active PFC greater than 0.99 at typical load, which supports cleaner power draw behavior. Better efficiency does not just help thermals, it also helps your system stay consistent under everyday swings. The result is a Bronze tier profile that feels practical for long streaming, study, and after hours gaming
700W Headroom with Strong +12V Delivery: Smoother Peaks, Fewer Worries
A 700W PSU rating gives balanced headroom for upgrades. The +12V rail is listed at 54A, which matters because CPU and GPU power largely ride there, performance bohat stable rehti hai when load changes fast. The +5V and +3.3V outputs are listed at 17A and 19A for controllers, storage, and board logic. This distribution supports modern motherboards and accessory heavy builds without feeling stretched. The published power excursion data shows the +12V excursion figure listed at 648W, which can help with short transient bursts, spike ke waqt breathing room milta hai. The operating temperature is specified at 0 40°C, aligning with typical indoor PC environments. When your game loads a new scene or your render starts, extra headroom can reduce stress on protection triggers. The net benefit is simple: smoother power behavior, fewer surprise shutdown moments, and a calmer daily experience
120mm Cooling with Intelligent Fan Curve: Quiet Focus, Controlled Heat
Cooling design decides whether performance stays consistent over time. XPG specifies a 120mm sleeve bearing fan and describes an intelligent fan curve approach for quieter, efficient cooling. The fan speed is listed as 2400 ± 10% RPM, giving the system room to respond when case temps rise. The sleeve bearing choice can feel smooth in daily acoustics, light load par sound soft rehta hai, while the curve aims to avoid unnecessary ramping. Better internal temperature management also supports stable voltage behavior because the PSU isn’t heat soaked. The unit’s operating temperature spec is stated as 0 40°C, which helps you plan airflow realistically. When airflow is steady, your long gaming sessions feel less “hot and loud” and more controlled. The end goal is a PSU that stays cool without becoming the noisiest part of your build
Compact 140mm Length: Easier Installs in More ATX Cases
Physical fitment is often the hidden make or break detail. XPG lists the PROBE dimensions as 140 x 150 x 86mm, which keeps it compact in length while staying ATX friendly. XPG also calls out the compact 140mm length for easier installation and reduced cable clutter, case ke andar kaam asaan hota hai. That extra breathing space can matter when your case has a PSU shroud, tight cable channels, or front mounted cooling hardware. The listed weight for the 700W model is 1526.6g, which helps you anticipate handling during install. A compact PSU can make first builds less frustrating, because you spend less time fighting stiff bends and cramped clearances. Better layout also helps airflow remain clean, aur dust management bhi simple rehti hai in the long run. The real benefit is time saved on every upgrade, swap, or re cable job later
Non‑Modular Practicality: Straightforward Wiring for Mainstream Builds
Non modular PSUs prioritize simplicity and fewer decisions. The PROBE 700W is listed as non modular in product specifications, yani cables fixed hotay hain for a straightforward setup. The connector set is detailed by XPG, including one ATX 24 pin connector for the motherboard. The spec also lists two EPS 8 (4+4) connectors, which helps many modern boards get proper CPU power. Storage and peripherals are supported with five SATA connectors, multiple drives lagao to wiring manageable rehti hai. Legacy accessories can still be powered using two 4 pin Molex connectors. Fixed cables mean you plan routing a bit more carefully, but the install flow stays predictable. For clean results, routing behind the motherboard tray keeps airflow open and build look refined. If you want a dependable, no fuss cabling style for a typical ATX tower, this approach stays practical
Reliability Signals That Add Up: 105°C Capacitors, MTBF, and Warranty
Reliability is built from thermal choices and protective behavior. XPG states the PROBE uses premium capacitors with a 105°C rating to support a longer lifespan. The specifications list an MTBF greater than 100,000 hours at 25°C, which is a useful durability indicator, real world mein stable operation ka signal milta hai. The operating temperature is specified at 0 40°C, so sensible case airflow remains important for best results. The protection set includes OTP and OPP, which are commonly described as shutdown protections when temperature or load exceed safe limits. That kind of safe shutdown matters because it reduces the chance of silent component damage. The warranty is listed as 3 years, giving you a clear support window for normal ownership cycles. For daily PCs that run work tabs, gaming, and downloads, these reliability signals create peace of mind without extra complexity
Best-Fit Buying Guide: When XPG Probe 700W Makes the Most Sense
Choosing the right PSU starts with your usage pattern. XPG Probe 700W combines 80 PLUS Bronze efficiency with ATX 2.52 compliance for mainstream compatibility. The 80 PLUS program shows Bronze targets like 82% at 20% load and 85% at 50% load, so a baseline expectation stays clear, decision easy ho jata hai. XPG’s own statement of up to 87% efficiency at 50% load adds extra appeal for typical mid load gaming and productivity. The compact 140mm length and 120mm fan are positioned for easier installation and controlled cooling. The protection set OVP/OPP/SCP/UVP/OTP/SIP supports safer daily operation, especially when power conditions are not perfect. The non modular design keeps the build straightforward, cable planning kar lo to finish clean aata hai. If you want a balanced Bronze PSU for a modern ATX desktop with sensible headroom, this model stays focused on the core things that matter: stability, safety, and practical fit
